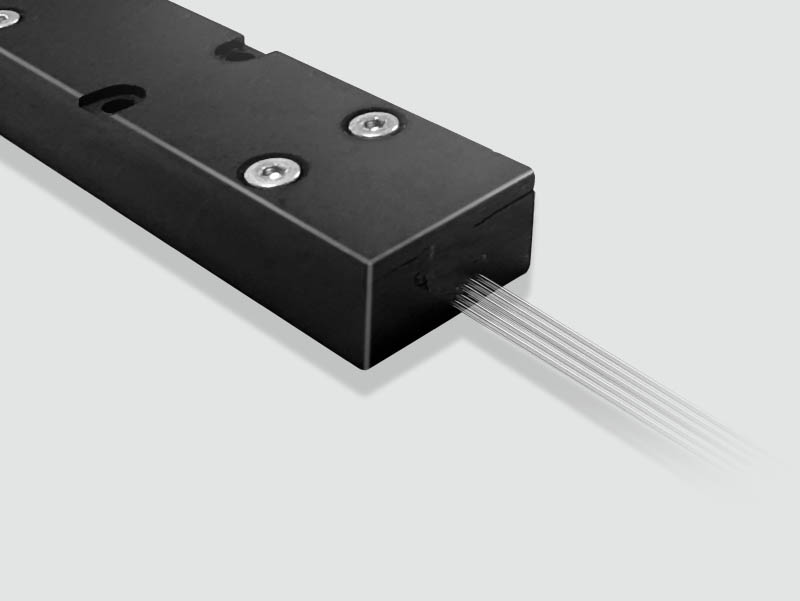

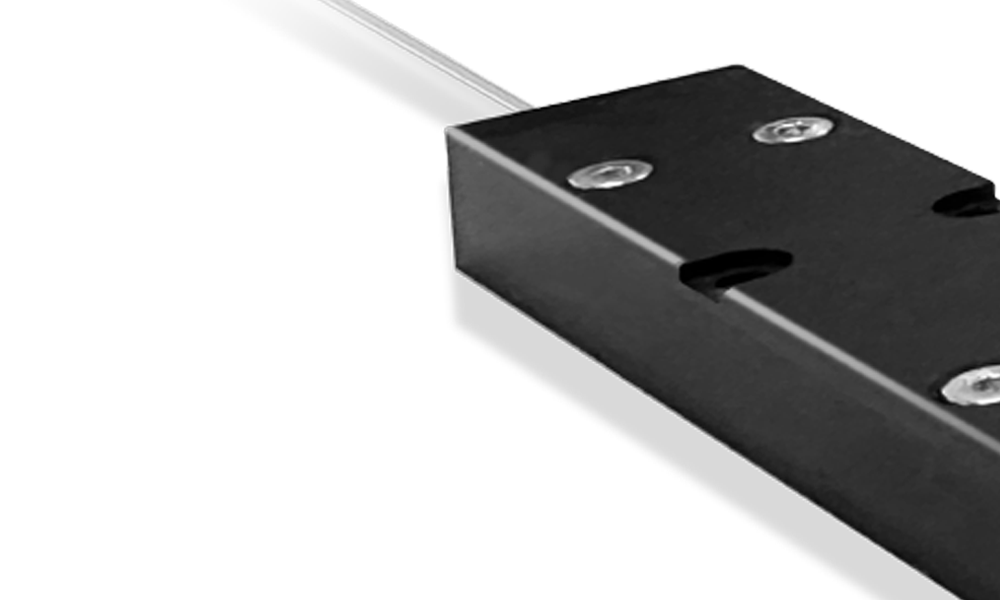

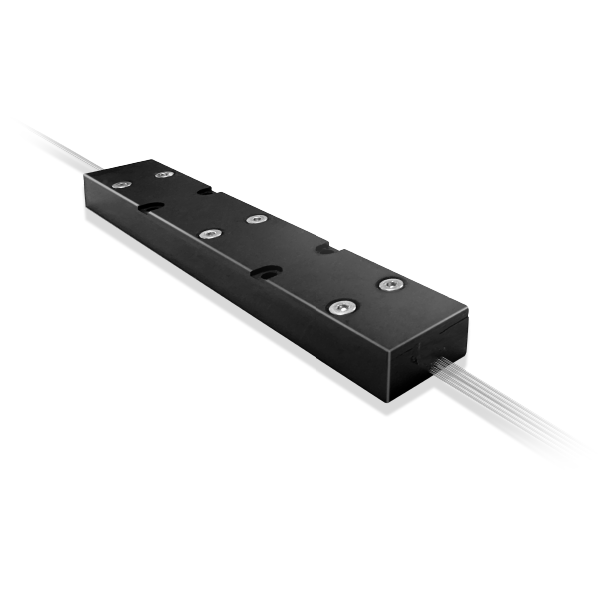

(6+1)×1 PUMP & SIGNAL SIDE-PUMP COMBINER
SIDE-PUMP COMBINER
(6+1)×1 PUMP & SIGNAL SIDE-PUMP COMBINER
PCT’s side-pump combiner offers extremely high pump transmission efficiency, low signal insertion loss and great beam quality because the core is uninterrupted during the fusion process.Furthermore, this feature of our technology can prevent the damage of pump LD from the backward pump light, making it more reliable for high-power lasers.
FEATURES
• Dual Gate® Back-reflection Protection (Reduce Backward Pump Light To Protect Pump Source)
• High Pump Transmission Efficiency
• Low Signal Insertion Loss
• Excellent Beam Quality
• Custom Design (PM Fiber Available)
SPECIFICATIONS
| Port Configuration | (6+1) x1 |
| Total Power Handling (W) | 2400 (400W/Port) |
| Pump Operating Wavelength (nm) | 900~1000 |
| Pump Fiber | MM-S200/220-22A |
| Signal Fiber | LMA-GDF-20/400-HP-M |
| Pump Efficiency (%) | ≥ 95% |
| Signal Insertion Loss (dB) | ≤ 0.1 |
| Dimensions | 100×15×10 mm |
