High Power Tap Monitor
High Power Tap Monitor

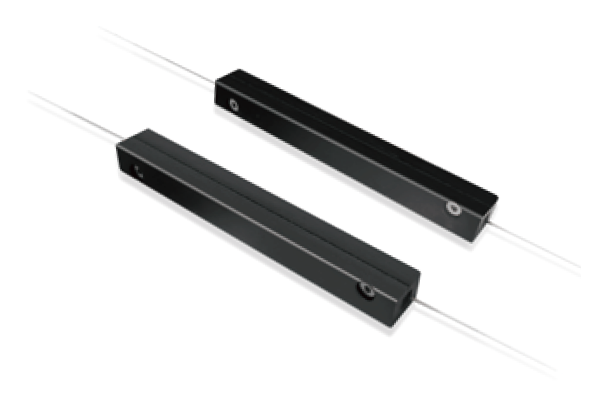

The high power tap monitor is a lossless in-line fiber-tapping device that enables real-time laser power sensing without interfering with the main signal. It features a uniform tapping ratio, ultra-low insertion loss, and a unique structure that preserves signal integrity. Reverse tapping also allows for back-reflection monitoring during material processing.
FEATURES

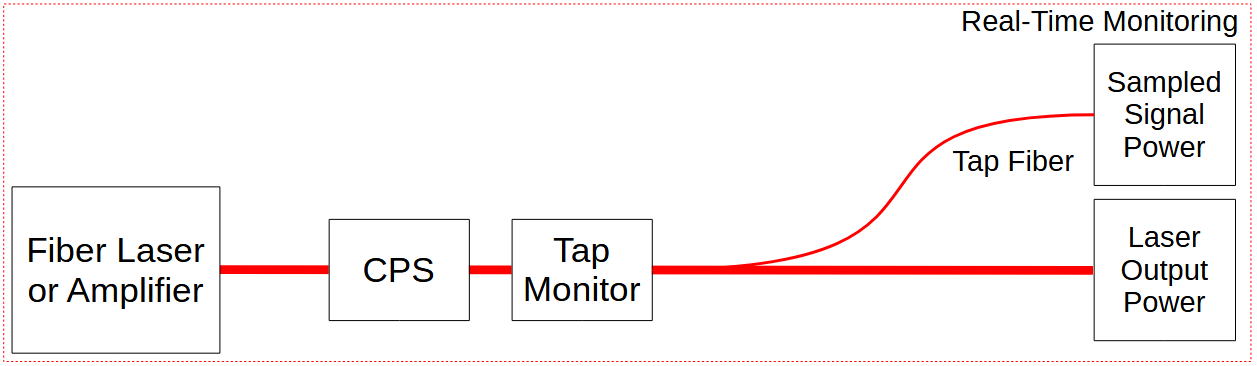

- In-line Monitoring
- Quantitative Power Monitoring by Sampling:
1. the Forward Light for Laser Output,
2. the Backward Light for Material Processing Reflections - Low Signal Insertion Loss
- Customizable Design (PM Fiber Available, Easily Integrated with CPS, Combiner, etc.)
SPECIFICATIONS
| Signal Wavelength Range | 1015nm~1115nm or 1530nm~1800nm |
| Tapping Fiber | HI-1060 MM-S220/242-22A or SMF-28 Ultra MM-S200/220-22A |
| Signal Fiber | LMA-GDF-20/400-HP-M or LMA-GDF-25/300 |
| Signal Insertion loss | ≦0.1 dB |
| Signal to Tap Efficiency (Tap Ratio) |
30dB ~ 65dB (According to Laser System) |
| Laser Power Handling | 2kW |
| Dimension | 100×15×10 mm or 60×9×7 mm |
